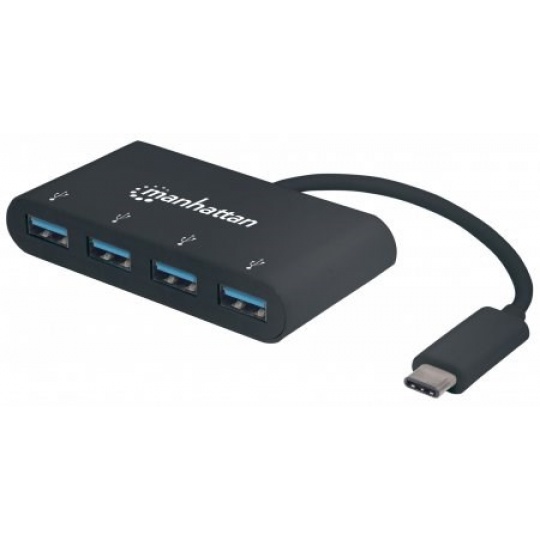

MANHATTAN USB 3.1 Gen 1 Type-C Hub, 4 Type-A Ports, Bus Power
MANHATTAN USB 3.1 Gen 1 Type-C Hub, 4 Type-A Ports, Bus Power
Quickly connect more USB Type-A peripherals to type-C devices
The Manhattan SuperSpeed USB 3.1 Type-C Hub easily adds four SuperSpeed Type-A ports to any USB type-C compatible device, expanding connectivity for keyboards, mice, external memory and other peripherals. Its SuperSpeed ports are backward compatible to support older devices, provide data transfer speeds up to 5 Gbps for external storage, printing and other activities, and capable of charging and powering at 5V/1A output.
Easy to add connectivity
A durable case, compact size and bus-power make it easily transportable to add USB connectivity almost anywhere. Installation is simple with Plug and Play and hot-swappable capabilities, and a built-in USB cable quickly connects the Manhattan SuperSpeed USB 3.1 Type-C Hub to any USB type-C port.
Features:
Connects type-C device to four SuperSpeed USB type-A ports for additional peripherals
USB-A ports support SuperSpeed (5Gbps) data transmission, charging up to 5V/1A
Overcurrent protection; hot-swappable
Plug and play
Three-Year Warranty
Specifications:
Standards and Certifications
USB
FCC
CE
RoHS2
WEEE
General
Data transfer speeds: 5 Gbps
1 upstream port with built-in cable, standard-C male
4 downstream ports, standard-A female
Up to 1A total power output
Bus powered
Overcurrent protection
Connections
USB type-C, 24-pin, male
(4) USB type-A, 4-pin, female
Physical
24-AWG cable gauge
Cable Length: 20 cm (8 in.)
Withstanding voltage: 300 VDC
Insulation resistance: 10 MΩ
Conductive resistance: 5 Ω
Housing: ABS plastic
Dimensions: 89 x 38 x 10 mm (3.5 x 1.5 x 0.4 in.)
Weight: 31 g (1.1 oz.)
Shielded
Operating Environment
Operation Temperature: 32 ~ 104°F (0 ~ 40°C)
Storage Temperature: -4 ~ 140°F (-20 ~ 60°C)
Humidity (noncondensing): 5 ~ 90%
System Requirements
Windows XP/Vista/7/8.1/10 or Linux or Mac 9.x/10.x or above
Package Contents
SuperSpeed USB 3.1 Gen 1 C Hub
Quick Instruction Guide
