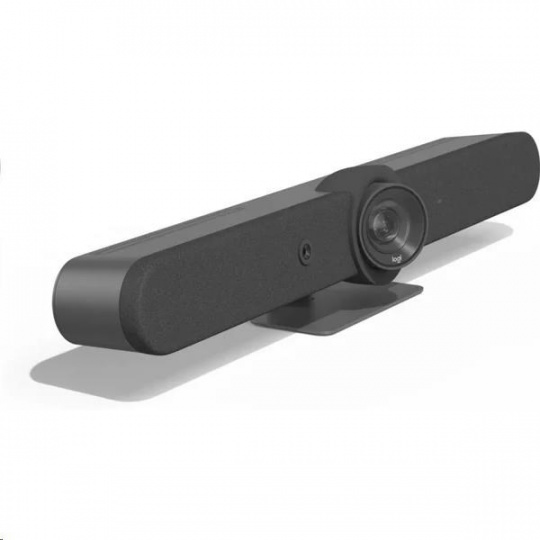

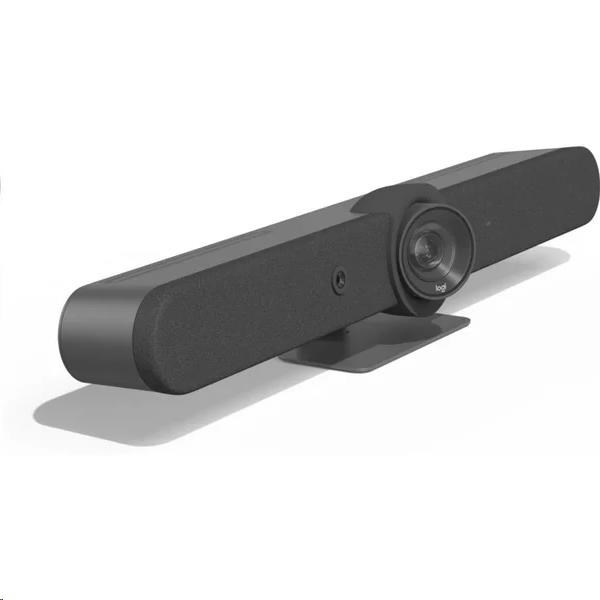

Logitech Rally Bar, videokonferenční systém, graphite/grafitová
Popis a parametry
Logitech Rally Bar, videokonferenční systém, graphite/grafitová
Rally Bar
All-in-one video bar for midsize rooms
TECHNICAL SPECIFICATION
| Dimensions (H x W x D) | 164 x 910 x 130.5 mm |
| Weight | 7.08 kg |
| Package Contents | - Rally Bar - Power supply - AC power cord - HDMI cable - USB cable - Remote control - Lens caps for main camera and AI Viewfinder - User documentation |
| Warranty Information | Standard: 2-year limited hardware warranty included Extended: Additional one-year extended warranty available at the time of hardware purchase. Contact your reseller for availability. |
| Camera | |
| Resolution | 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps |
| Pan | Motorized ±25° |
| Tilt | Motorized ±15° |
| Zoom | 15X HD zoom (5X optical, 3X digital available with upcoming software update) |
| Diagonal field of view (dFoV) | 90° |
| Horizontal Field of View | 82.1° |
| Vertical Field of View | 52.2° |
| Total Room Coverage | 132.1° Horizontal x 82.2° Vertical |
| Speakers | |
| Drivers | 2 x 70 mm |
| Output | 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at 1 meter |
| Sensitivity | 90+/-3dB SPL at 1W, 1 meter |
| THD | 1kHz < 2% |
| Speaker Sampling Rate | 48 kHz |
| Microphones | |
| Frequency response | 90Hz – 16kHz |
| Sensitivity | >-36dBFS +/-1 dB @ 1Pa |
| Microphone data rate output | 48 kHz |
| Pickup Range | 4.5 m |
| Beamforming Elements | Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams |
| Audio processing | AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) |
| Noise suppression | AI filter |
| Add-on Mics | Supports up to 3 additional Rally Mic Pods for larger conference rooms |
| RightSense™ Technologies | |
| RightLight™ | Renders natural skin tones for each participant. |
| RightSight | Maintains persistent room awareness and detects human figures to auto-frame participants. |
| RightSound | Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo |
| Interfaces | |
| HDMI Out | 2 |
| HDMI In | 1 |
| USB 3.0 | 3 x Type A 1 x Type C |
| Network | 10/100/1G Ethernet |
| WiFi | 802.11a/b/g/n/ac (MIMO) |
| External Mic Input | Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable) |
| Remote Control | Bluetooth® Low Energy |
| Power & Cables | |
| Power supply | Auto-sensing |
| Operating Voltage/Power | 100-240V, 19V, 4.74A |
| Power Supply Dimensions | 127 x 51 x 30 mm |
| DC Cable | 1.5 m |
| AC Cable | 1 m |
| HDMI 1.4 Cable | 2 m |
| USB A to USB C 3.0 Cable | 2.2 m |
| Environmental | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 10 to 95% |
| BTU/hr | 57 idle, 64 in meeting |
| Security | |
| Full Disk Encryption | AES-128 |
| Data Encryption | Symmetric Keys, PKI |
| Device Identity | Protected by device attestation |
| Device Access | Authenticated using API |
| Key Protection | Arm TrustZone, RPMP |
| Certifications & Compatibility | |
| Certifications | Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications. |
| Compatibility | Plug and play USB connectivity with virtually any video conferencing application |
| Appliance mode | Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms. |
| General Specifications | |
| Built-in Components | 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform |
| Enclosure | All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference |
| Device Management | Logitech Sync |
| Displays Supported | 2 |
| Display Resolution | Up to 4K |
| Accessories | |
| Mounts | Wall Mount for Video Bars, TV Mount for Video Bars |
| Audio | Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable |
| Connectivity | Logitech Strong USB (10 m, 25 m, 45 m) |
| Touch Controller | Logitech Tap |
.
