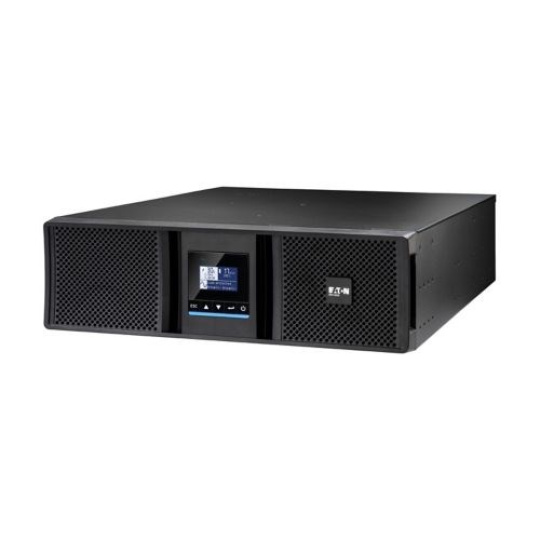

Eaton 9SX 6000i RT3U G2, , ON-LINE, rack 3U
Popis a parametry
Eaton 9SX 6000i RT3U G2, , ON-LINE, rack 3U
General specifications
| Product Name | Eaton 9SX Gen2 UPS |
| Catalog Number | 9SX6KIRT3UG2 |
| EAN | 3553340710667 |
| Product Length/Depth | 684 mm |
| Product Height | 130 mm |
| Product Width | 440 mm |
| Product Weight | 43.1 kg |
| Warranty | 2 year |
| Compliances | LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive |
| Certifications | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM KCC BSMI |
| Model Code | Eaton 9SX 6000i RT3U G2 |
Technické údaje produktu
| Special features |
|
| Topology | Online/Double-conversion |
| Form factor | Rack/tower |
| Rack size | 3U |
| Construction type | 482.6 mm (19 inch) device |
| Color | Black |
| VA rating | 6000 VA |
| Wattage | 6000W |
| Rack mounting kit | Yes |
| Package contents |
|
| Internal bypass | Yes |
| Hot swap power | No |
| Auto shutdown function | Yes |
| Primary frequency - max | 70 Hz |
| Primary frequency - min | 40 Hz |
| Input connection | Hardwired/fixed connection |
| Input nominal voltage | 230V default (200/208/220/230/240V) |
| Nominal frequency | 50/60 Hz |
| Input frequency range | 40-70 Hz |
| Input power factor | >.99 |

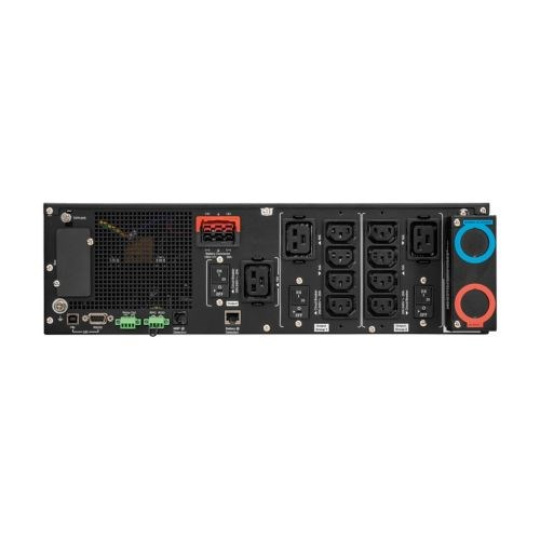

| Receptacle | (8) C13, (3) C19, Hardwired |
| Number of Outputs C13 | 8 |
| Number of Outputs C19 | 3 |
| Number of outputs hardwired | 1 |
| Output waveform | Sine wave |
| Voltage | 230V |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Feed type | 1 |
| Voltage type | AC |

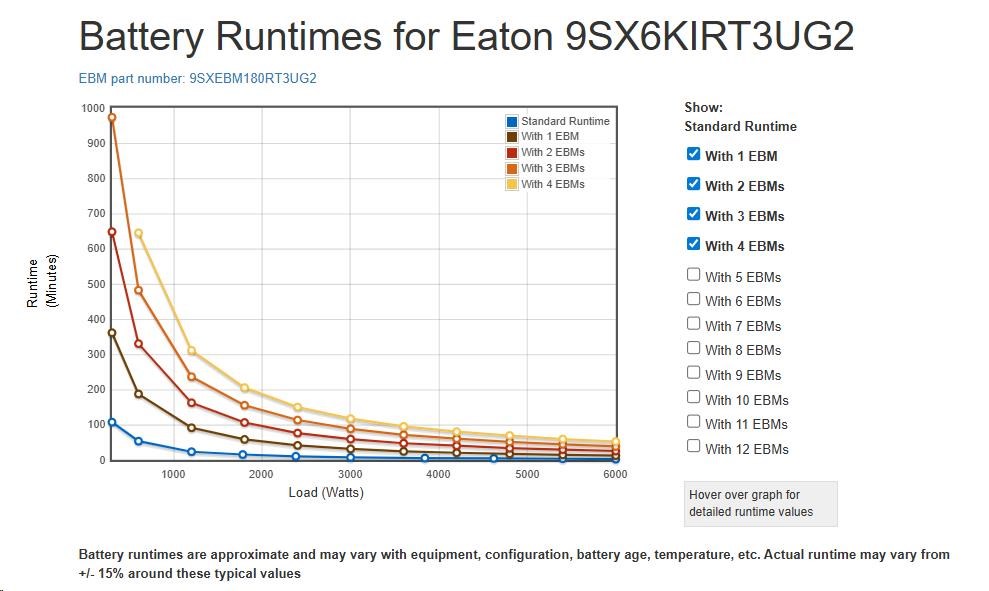

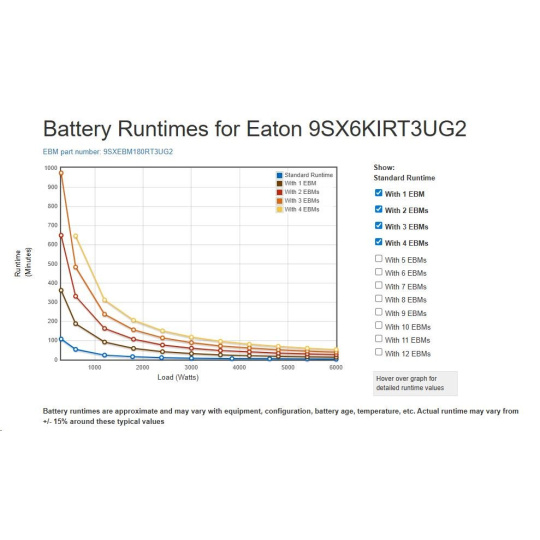

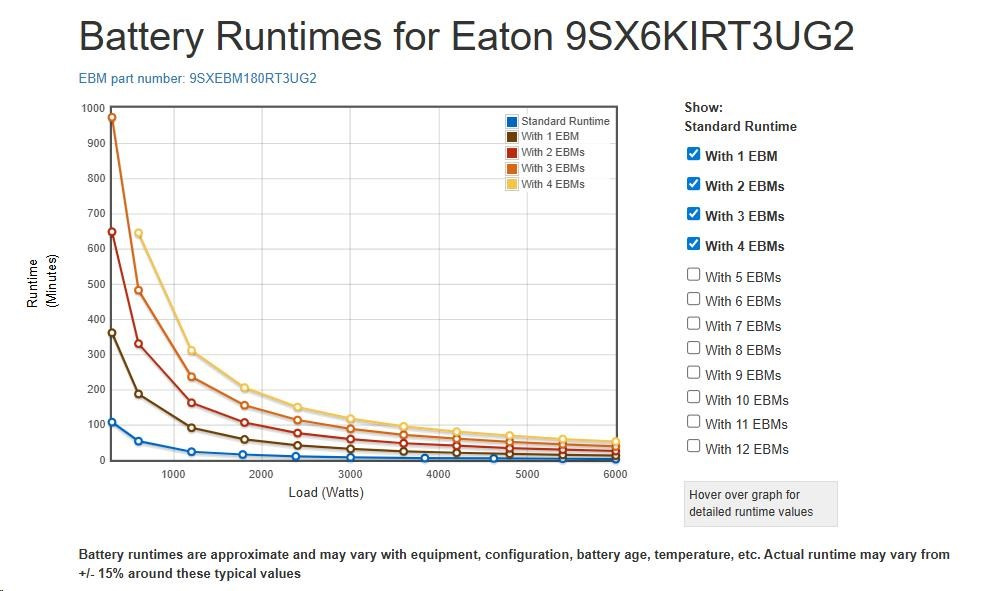

| Runtime graph | |
| Battery management |
|
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery rating | 12 V / 5 Ah |
| Battery type | Sealed, lead-acid |
| Extended battery capability | Yes |
| Runtime at half load | 7.1 min |
| Communication |
|
| Expansion slots | One slot |
| Ethernet interface | No |
| Includes network card | No |
| Software compatibility | Eaton Brlightlayer Software suite |
| User interface | Multilingual graphical LCD display |
| Type of interface | Other |
| Potential free switch contact | Yes |
| Altitude | 3000 m |
| BTU Rating | Online: 716 BTU/hr |
| Noise level | <40 dB at 1 meter |
| Relative humidity | 0-95% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Input voltage - max | 276 V |
| Input voltage - min | 100 V |
| Output voltage - max | 240 V |
| Output voltage - min | 200 V |
| Secondary frequency - max | 60 Hz |
| Secondary frequency - min | 50 Hz |
| Battery quantity | 15 |
| Efficiency at max. load | 96.5 |
| Efficiency (eco-mode) | 98.9 |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Max number of battery packs | 12 |
| Output frequency | 50/60 Hz |
| Output power factor | 1 |
| Output voltage range | 200/208/220/230/240 V +/- 1% |
| Phase (input) | 1 |
| Phase (output) | 1 |
| Runtime at full load | 2.6 min |
| Voltage distortion output (linear load) - max | 1 |
| Communication interface | USB RS232 |
| Power consumption | 210 W |
ParametryPorovnání
Počet výstupních zásuvek
4
Použití
Server
Použití
Data Center
Zdánlivý výkon VA
5000
Topologie
On-Line
Provedení
Tower/Rack
Fáze (Vstup/Výstup)
1:1
Komunikace
RS232
Komunikace
USB
Možnosti
Volitelně Management karta
Možnosti
Prodloužení záložního času
Výška v Racku
3U
Typ výstupu
IEC 19
Typ výstupu
Svorkovnice
Typ výstupu
IEC 13
