• 4 x DDR4 memory slots, support up to 128GB


• Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC


• Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/


• 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE


• 1DPC 1R max speed 5100 MHZ


• 1DPC 2R max speed 3866 MHZ


• 2DPC 1R max speed 4000 MHZ


• 2DPC 2R max speed 3600 MHZ


• Dual channel memory architecture


• Supports non-ECC UDIMM memory


• Supports ECC UDIMM memory (non-ECC mode)


• Supports un-buffered memory

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) ¹


• 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed ²


• 2x PCIe 3.0 x1 slots
  The supported specification depends on installed processor.
  When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.

• Supports 2-Way AMD CrossFire™ Technology

• 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz


• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz


• Maximum shared memory of 2048 MB
  Available for the processor with integrated graphics.

AMD B550 Chipset

• 6x SATA 6Gb/s ports


• 2x M.2 slots (Key M)


• M2_1 slot (from AMD Processor)


• Supports PCIe 4.0/ 3.0 x4 1


• Supports SATA 6Gb/s


• Supports 2242/ 2260/ 2280/ 22110 storage devices


• M2_2 slot (from AMD B550 chipset)


• Supports PCIe 3.0x4


• Supports 2242/ 2260/ 2280 storage devices

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices


• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

AMD B550 Chipset

• 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)


• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

• 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)


• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

• Realtek® ALC1200 Codec
  7.1-Channel High Definition Audio
  Supports S/PDIF output

• 1x Realtek® RTL8125B 2.5Gbps LAN controller


• 1x Realtek® RTL8111H 1Gbps LAN controller

• 1x 24-pin ATX main power connector


• 1x 8-pin ATX 12V power connector


• 6x SATA 6Gb/s connectors


• 2x M.2 slots (M-Key)


• 1x USB 3.2 Gen 1 5Gbps Type-C port


• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)


• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)


• 1x 4-pin CPU fan connector


• 1x 4-pin water-pump fan connector


• 6x 4-pin system fan connectors


• 1x Front panel audio connector


• 2x System panel connectors


• 1x Chassis Intrusion connector


• 2x 4-pin RGB LED connectors


• 2x 3-pin RAINBOW LED connectors


• 1x TPM module connector


• 1x Clear CMOS jumper

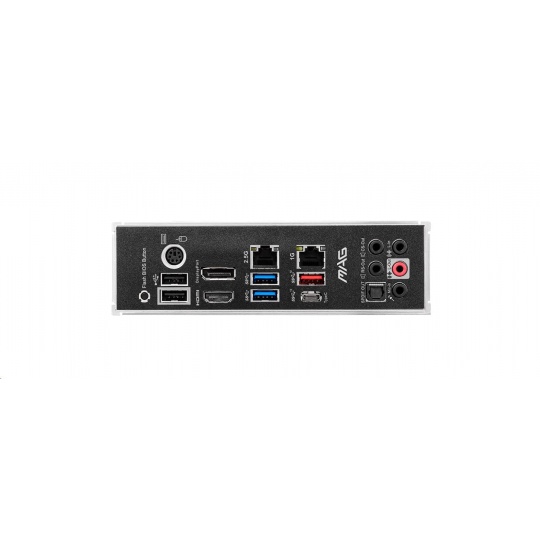

• PS/2 Combo Port


• DisplayPort


• 2.5G LAN Port


• 1G LAN Port


• HD Audio Connectors


• Flash BIOS Button


• USB 2.0 Port


• HDMI Port


• USB 3.2 Gen 1 5Gbps (Type-A)


• USB 3.2 Gen 2 10Gbps (Type-A + Type-C)


• Optical S/PDIF OUT

• ATX Form Factor


• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

• 9 mounting holes
