GIGABYTE MB Sc LGA1200 H470M DS3H, Intel H470, 4xDDR4, VGA, mATX

Socket (patice):Socket 1200; Formát:micro ATX; Integrovaná grafická karta:Ano (CPU); Chipset:Intel; Technologie paměti RAM:DDR4; PCI express 16x:1; Integrovaná LAN karta:1; Podpora RAID:1, 5, 10; Rozhraní:HDMI, VGA, USB 2.0, USB 3.2, 3.5mm Jack, LAN, DisplayPort, DVI, USB Type-C.... více
Běžná cena: 2 575  (-1%)
2 106.61 Kč bez DPH
Na dotaz
2 549 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 524041
Kód dod.: H470M DS3H
EAN: 4719331808792
Záruka: 36 Měsíc(ů)
Výrobce: Gigabyte
Popis a parametry

GIGABYTE MB Sc LGA1200 H470M DS3H, Intel H470, 4xDDR4, VGA, mATX

H470M DS3H (rev. 1.0)


Intel® H470 Ultra Durable Motherboard with USB 3.2 Gen1 Type-C™, Dual NVMe PCIe Gen3 X4 M.2 Slots, 2-Way CrossFire™ Multi-Graphics, Intel® GbE with cFosSpeed, 4 Display Interfaces Support, Smart Fan 5, RGB FUSION 2.0



  • Supports 10th Gen Intel® Core™ Series Processors

  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

  • Dual NVMe PCIe Gen3 X4 M.2 Connectors

  • Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP

  • Intel® Optane™ Memory Ready

  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software

  • Intel® USB 3.2 Gen 1 Type-C™ Support

  • 4 Display Interfaces Support

  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

  • Anti-Sulfur Resistors Design

  • Q-Flash Plus Update BIOS without Installing the CPU?Memory and Graphics Card




TECHNICAL SPECIFICATIONS











































CPU

  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

  2. L3 cache varies with CPU


Chipset

  1. Intel® H470 Express Chipset


Memory

  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules

  2. Intel® Core™ i5/i3/Pentium®/Celeron®processors:
    Support for DDR4 2666/2400/2133 MHz memory modules

  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  4. Dual channel memory architecture

  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  7. Support for Extreme Memory Profile (XMP) memory modules


Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:



  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.

  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.

  4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

  5. Support for up to 3 displays at the same time


Maximum shared memory of 512 MB


Audio

  1. Realtek® ALC887 codec

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.


LAN

  1. Intel® GbE LAN chip (1000 Mbit/100 Mbit)


Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)

  3. 2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)


Multi-Graphics Technology

  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies


Storage Interface

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)

  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)

  3. 6 x SATA 6Gb/s connectors

  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

  5. Intel® Optane™ Memory Ready


USB

Chipset:



  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support

  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

  3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)


Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x CPU fan header

  4. 3 x system fan headers

  5. 1 x addressable LED strip header

  6. 1 x RGB LED strip header

  7. 2 x M.2 Socket 3 connectors

  8. 6 x SATA 6Gb/s connectors

  9. 1 x front panel header

  10. 1 x front panel audio header

  11. 1 x USB 3.2 Gen 1 header

  12. 2 x USB 2.0/1.1 headers

  13. 2 x Thunderbolt™ add-in card connectors

  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  15. 1 x serial port header

  16. 1 x parallel port header

  17. 1 x Clear CMOS jumper

  18. 1 x Q-Flash Plus button

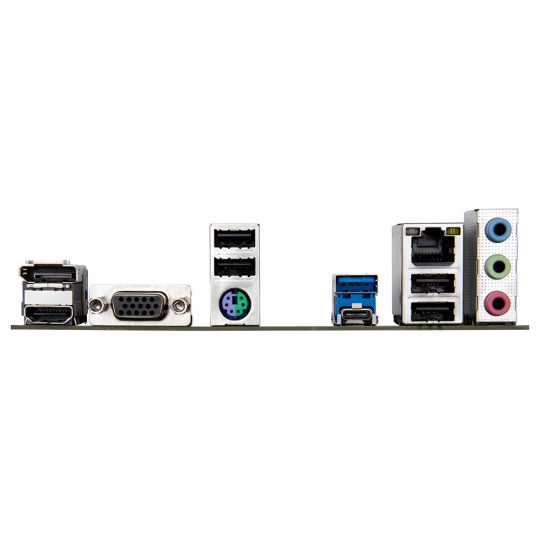

Back Panel Connectors

  1. 1 x PS/2 keyboard/mouse port

  2. 1 x D-Sub port

  3. 1 x DVI-D port

  4. 1 x HDMI port

  5. 1 x DisplayPort

  6. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support

  7. 3 x USB 3.2 Gen 1 ports

  8. 2 x USB 2.0/1.1 ports

  9. 1 x RJ-45 port

  10. 3 x audio jacks


I/O Controller

  1. iTE® I/O Controller Chip


H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Overheating warning

  5. Fan fail warning

  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.


BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features

  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer

  2. Support for Q-Flash Plus

  3. Support for Q-Flash

  4. Support for Xpress Install


Bundled Software

  1. Norton® Internet Security (OEM version)

  2. cFosSpeed


Operating System

  1. Support for Windows 10 64-bit


Form Factor

  1. Micro ATX Form Factor; 24.4cm x 24.4cm



.
Technologie paměti RAM
DDR4
Socket (patice)
Socket 1200
Integrovaná grafická karta
Ano (CPU)
Chipset
Intel
PCI express 16x
1
Integrovaná LAN karta
1
Podpora RAID
10
Rozhraní
3.5mm Jack
Formát
micro ATX
